Mobile robot 1200 kg

250 - 1200 mm
1200 kg

Mobile robot for efficient high-lift use up to a transfer height of 1.2 metres.
Compact design with a high capacity of up to 1,200 kg.
Autonomous, safe obstacle avoidance.
Lithium-ion battery and automatic booster charging for high availability.
Intuitive display with simple step-by-step instructions for quick recommissioning.

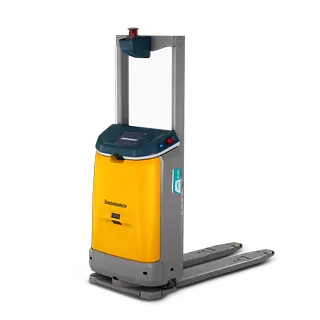

EAC 212a

Our compact and agile mobile robot EAC 212a is ideally suited for automated high-lift transport in busy logistics and production areas. In daily internal goods transport, it boasts high adaptability, safety and flexibility. Intelligent software and contour-based VDA 5050 navigation enable efficient use of the EAC 212a in existing working environments, without any costly infrastructure adjustments. The certified 360° safety sensor system ensures reliable personal protection in mixed operation. At the same time, dynamic obstacle avoidance enables uninterrupted material flow. With our AMR EAC 212a, you benefit from tailor-made, attractive financing models and can easily scale your fleet according to the success of your business.

Li-Ion

No worries. No compromise.

The Jungheinrich Li-ion Guarantee Plus offers up to 8 years of reliable performance for our high-quality lithium-ion batteries. Confident in their high performance and long service life, we also guarantee a hassle-free switch back to your original technology within 6 months of delivery.

Features

Compact design

Bidirectional truck concept with a high capacity of up to 1,200 kg.

Intelligent load handling

The truck supports a wide variety of load carriers and operates safely with floor storage locations, materials handling equipment and buffer lanes.

Intuitive man / machine interface

Smart software features allow for easy use in existing warehouse environments.
Wide level of employee acceptance thanks to intuitive communication with the mobile robot.
Clear status display minimises the need for manual intervention.

Safe in mixed operation

Ideal for dynamic working environments thanks to 360° safety sensor system and autonomous obstacle avoidance.

High degree of autonomy

Using 3D pallet recognition, the mobile robot can also detect manually positioned pallets that are not as precise, with an offset of up to ±100 cm and twisting of up to 10°, and transport them to their destination.
The integrated display provides clear instructions to quickly restore operation in the event of an interruption.

Maximum availability

High-performance Jungheinrich lithium-ion battery with a warranty period of up to 8 years for high investment security.
Automatic charging and the option for booster charging ensure the continuous readiness of the mobile robot.

Future-proof software platform

Well-designed hardware and software components enable the rapid implementation and safe operation of the mobile robots.
Wide range of applications thanks to compatibility with the VDA 5050 standard.

Can be flexibly extended

Can be used as a stand-alone solution or connected to an existing WMS / ERP system.
Straightforward integration of additional trucks as project volume increases.
Thanks to regular over-the-air updates, you continuously benefit from the latest developments of the mobile robot.

Effective navigation

Navigation without artificial landmarks eliminates the need for extensive warehouse modifications.


Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EAC 212a	1,200 kg	1,200 mm	6 km/h	1,816 mm	25.6 V

Downloads

Product advantages EAC 2a pdf (1.2 MB)

Technical data EAC 2a pdf (762.7 KB)
