The rear-area warning device monitors the space to the rear of the vehicle and gives the operator an optical and acoustic warning signal that varies in intensity and volume depending on the distance of the detected object.

driveCONTROL automatically controls the vehicle speed depending on the current lift height. This increases safety when travelling with a raised pallet, while still ensuring even more sensitive manoeuvring during the work cycle.

In addition to reducing the travel speed, liftCONTROL lift speed control also automatically reduces the tilt speed of the mast from a defined lift height. This allows the driver to carry out stacking and retrieval operations faster and more safely.

The indoor/outdoor sensor detects by radar whether the vehicle is in a hall or outdoors. Depending on the location, the sensor controls the maximum permissible speed of the vehicle.

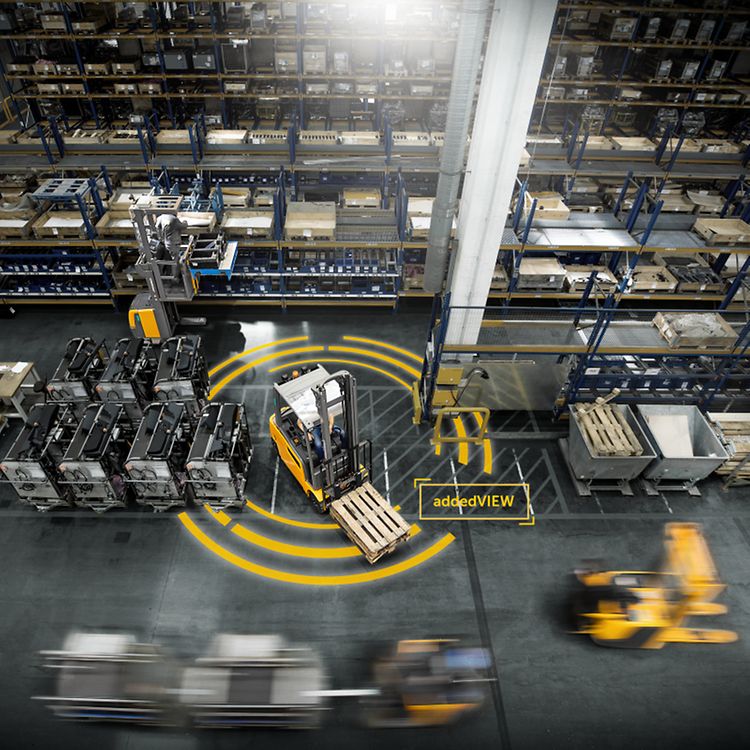

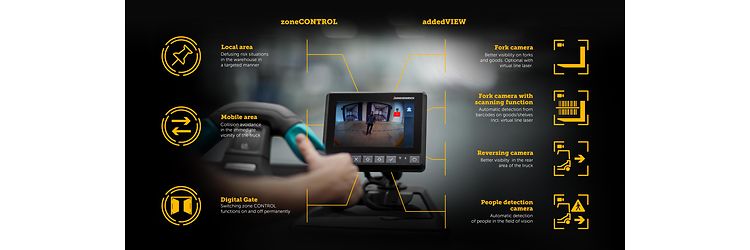

addedVIEW 360° is an all-round vision system consisting of four digital cameras for safer and more precise manoeuvring through the warehouse. In bird's-eye view from above, the 6" full-colour display shows the driver his vehicle and its immediate surroundings, optionally using speed-dependent auto zoom. The forward and backward view is available as a single camera perspective or in any combination of two views in a split screen. To optimally manoeuvre the truck in confined spaces, the camera view automatically displays the drive direction or can be set and configured manually.

Speeding in corners is a leading risk factor for tip-over accidents. curveCONTROL automatically adjusts the truck speed when cornering, depending on load and steering angle: the heavier the load, the slower the truck‘s cornering speed. This significantly decreases the risk of overturning or slipping, while enhancing warehouse safety for your employees and trucks as well as your goods.

The operationCONTROL assistance system records the current load weight as well as the load torque and lift height and emits a warning signal as soon as the residual capacity of the vehicle is exceeded. This prevents the truck from tipping and enables quick operation with increased security.

tiltCONTROL automatically maintains the vertical position of the mast for faster and safer stacking and retrieval. When one-third of the load capacity has been reached, the mast adjusts its vertical angle automatically in order to transport the load safely at all times.

Depending on load weight and lift height, our assistance system reachCONTROL automatically adjusts the reach truck’s reach and tilting speed. This ensures safe and efficient storage and retrieval processes and up to 15 percent savings in time.

liftNAVIGATION is a semi-automated system for reach trucks that helps select the correct lift height. The target storage position is sent directly from the Warehouse Management System (WMS) to the vehicle. Once the driver reaches the correct aisle position, the forks automatically move to the right shelf level.

With this assistance system, you can make your goods throughput even more efficient. Barcodes on the rack are detected by the camera and automatically matched with the Warehouse Management System. The operator no longer has to search for the right storage compartment or use a hand-held scanner. The confirmation is ergonomically displayed on the steering wheel or via the assistance display, which speeds up the process and reliably prevents storage in the wrong location.
