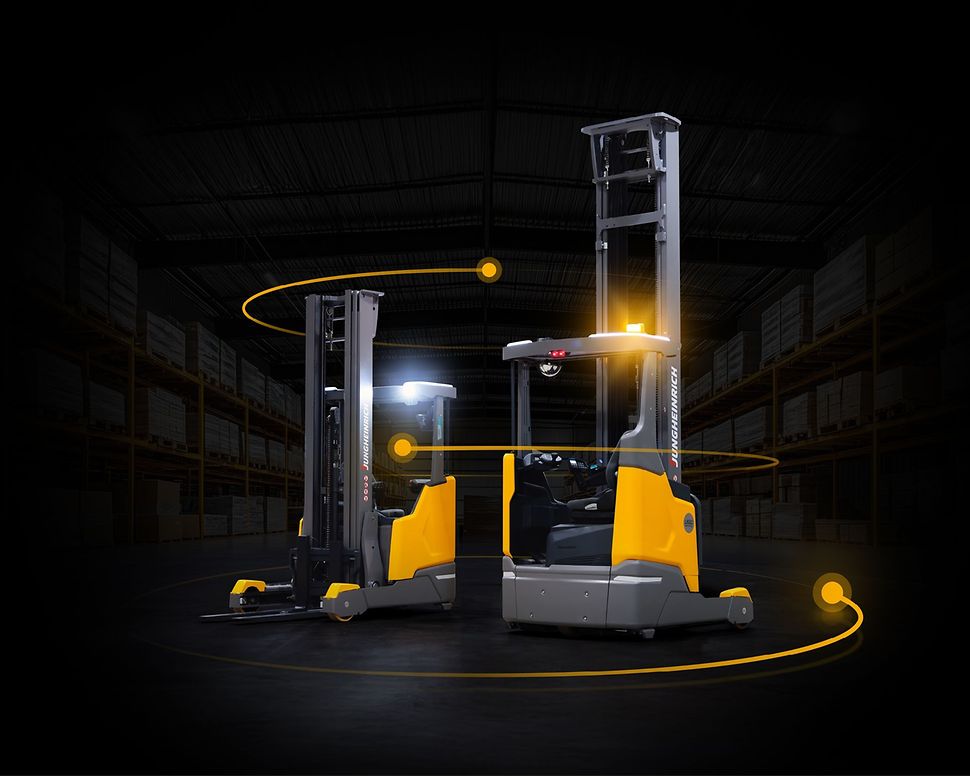

Stage Schubmaststapler

Reach Trucks

Our reach trucks – agile and powerful

For over sixty years, our reach trucks have been delivering reliable service and performance in warehouses around the globe. Our electric reach trucks set new benchmarks for excellent performance in confined conditions thanks to their compact construction and outstanding lifting capacity.

The reach truck principle

Reach trucks offer two major advantages:  compact construction, and an amazing lift height of up to 13 metres. When picking up loads, a reach forklift moves its mast forward until the forks are positioned in front of the truck. This is known as “forward reach”. The goods are then “pulled back” between the front and rear axles for subsequent transport. This operating principle reduces the overall length of the truck, making it extremely agile. It also improves driving stability and minimises the need for compensation via counterweights. This allows our reach trucks to quickly and safely transport loads weighing up to 2.5 tons.

Reach trucks – narrow-aisle specialists

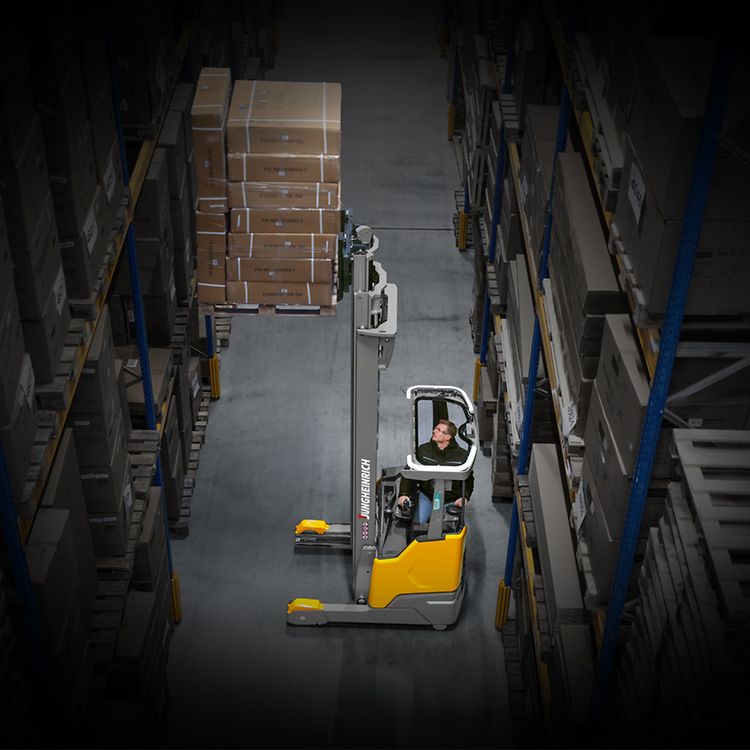

When it comes to intralogistics, efficient use of space in confined aisles is crucial. It’s in environments like this that our reach trucks demonstrate their full capability. Thanks to the compactness provided by the reach mast, they can easily navigate the narrowest of aisles. At the same time, our reach trucks offer rapid acceleration as well as impressive lift and reach speeds, ensuring excellent throughput performance.

We also cater to your business’s individual requirements and storage systems with a number of option packages ranging from “Efficiency” to “liftPLUS”. These packages enable fast pallet turnover even at great lift heights – and allow you to cover long distances at high speed.

As well as several different lift heights and capacity classes, our warehouse truck range also includes models for varying ground conditions. This feature ensures high travel safety on any terrain. You can also choose to fit the reach trucks with all-weather cabins for outdoor use.

Lower your storage costs with reach trucks

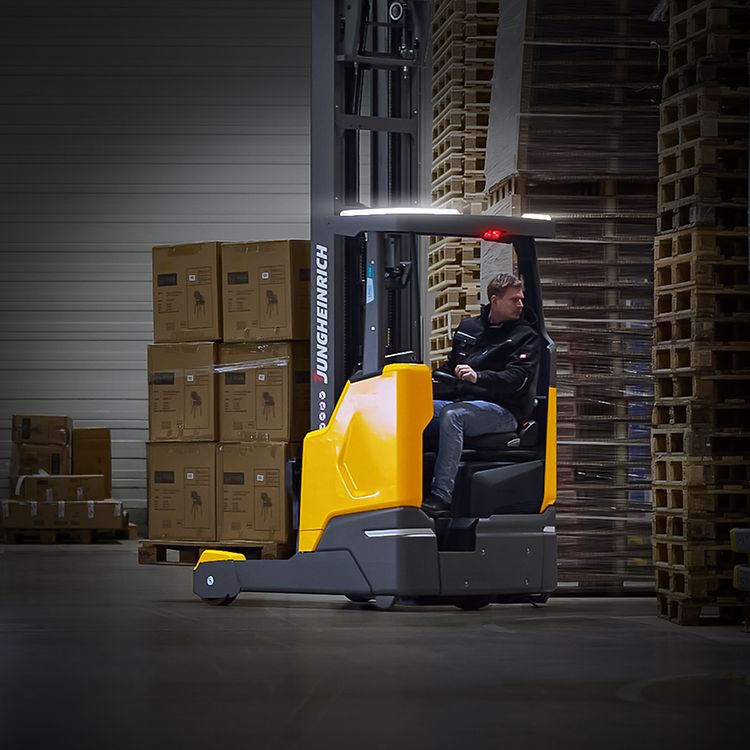

Our reach trucks offer a range of technical and ergonomic benefits such as operating and control functions as well as energy recovery during braking, which greatly reduces overall energy consumption.

Because every second counts.

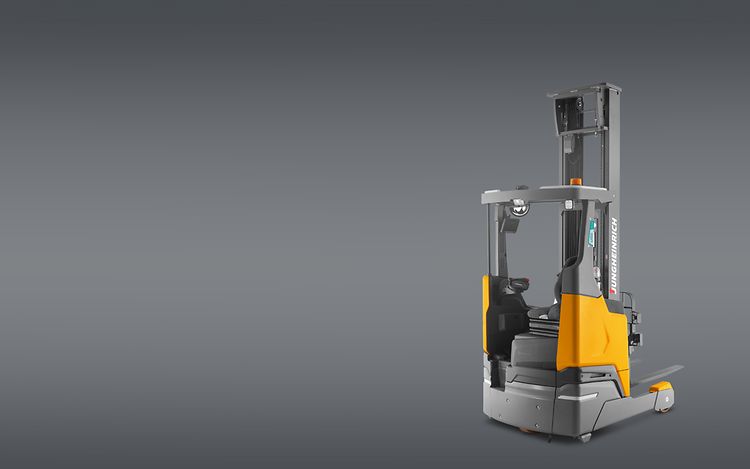

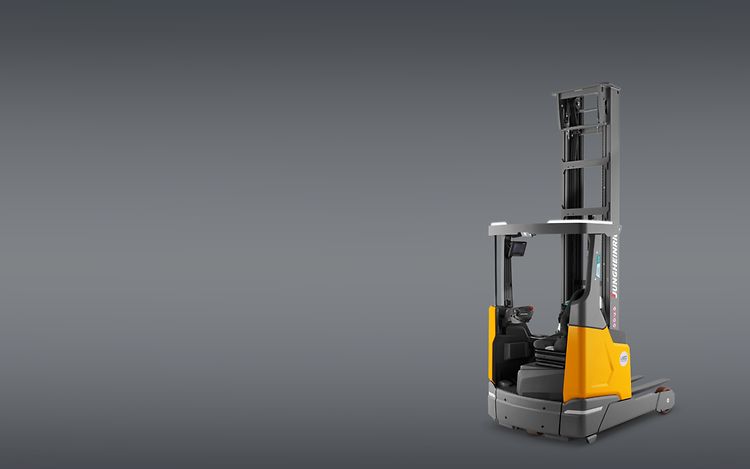

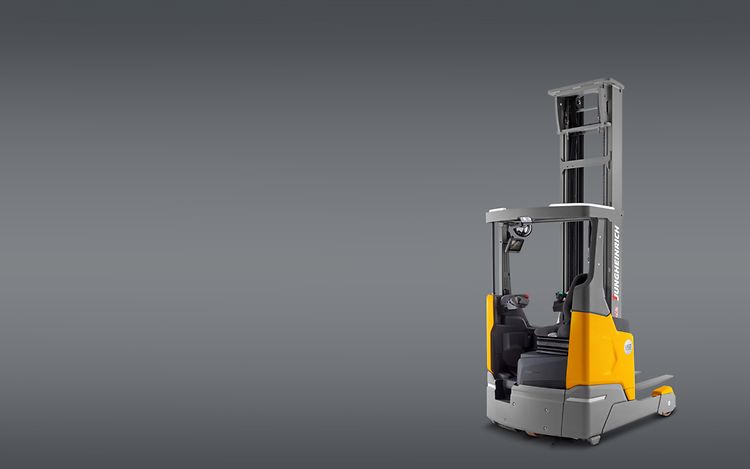

Are you looking for fast and reliable warehouse processes? The new Jungheinrich ETV reach trucks with optimised mast offer impressive lowering speeds of up to 1.2 m/s and increase handling capacity by up to 2 % – thanks to the optional Jungheinrich loweringPRO. Are you ready to reach the highest technological standards in efficiency, safety and innovation?


Because our optimised mast is sure to win you over:

  • Jungheinrich loweringPRO (optional) for increased throughput by up to 2 %
  • Fluid mast transitions and gentle end stops when extending the mast, ensuring smooth workflows free from downtime
  • Noise reduction for a quiet working and driving environment
  • Lift heights of 13.5 m and 14 m for efficient warehouse utilisation
  • Improved visibility for increased safety
  • 750 kg residual capacity for increased throughput
  • Fork positioner with optimised visibility for safe handling of wide loads


Because the new ETV reach trucks ensure sustainability:

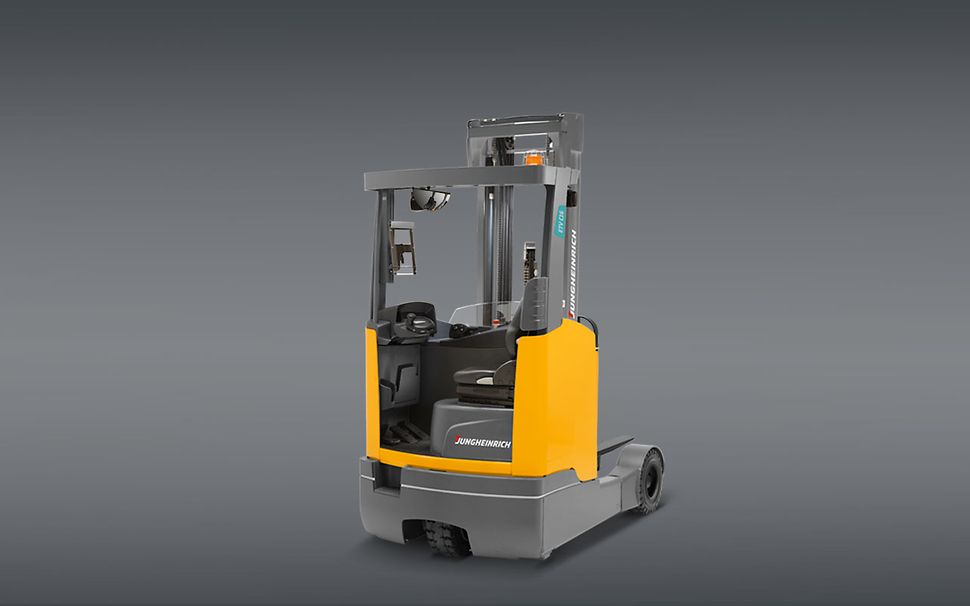

Reach Truck 1,6t

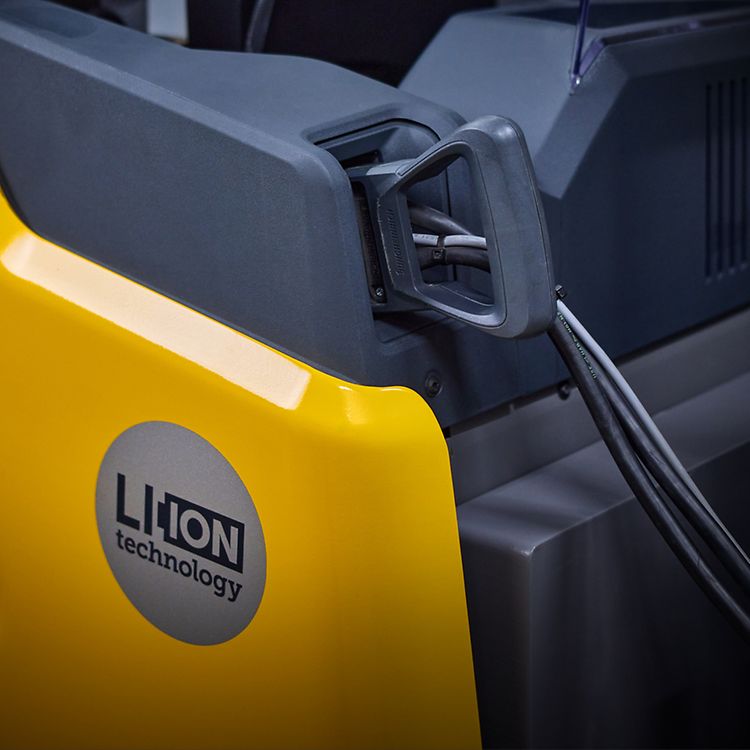

The world’s first reach truck with a fully integrated lithium-ion battery.
