Order picker 2.0t

700 - 1,500 mm
2,000 kg

Maximum picking performance with lowest energy consumption
Powerful motor with high acceleration
jetPILOT for intuitive operation same as driving a car
Extensive options for an optimal workplace
Ergonomic mast lift up to 700 mm (1500 mm optional)

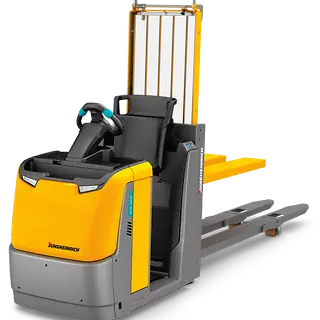

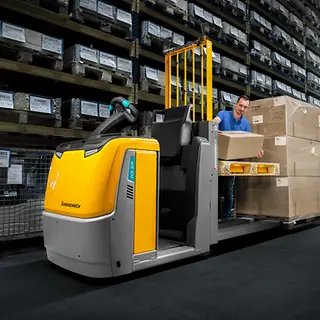

ECD 320

Our robust and versatile ECD 320 low-level order picker works for you with twice the force: the combination of double-length forks with additional mast lift for the transportation of two pallets allows ergonomic order picking with maximum picking performance and optimum energy efficiency. The powerful 2.8-kW motor (3.2-kW available as an option) ensures the best driving and acceleration performance. Thanks to optional lithium-ion technology, it will also keep on powering through multi-shift operation. It even shines in tough conditions: dynamic acceleration, safe cornering and high end speeds. Despite its compact dimensions, the order picker offers a spacious, individually adjustable operator position with jetPILOT multifunctional steering wheel for back-friendly and time-saving order picking. Optimal all-round visibility, easy accessibility of all controls and additional lighting options ensure safe working.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 8 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Features

Powerful and efficient drive concept

Powerful acceleration and high top speed.
Safe cornering speed due to curveCONTROL (optional).
Optional drivePLUS package with highly efficiency 3.2 kW motor for even greater drive and acceleration performance with load-dependent curveCONTROL.
Regenerative braking with energy recovery.

Long operating times with lead-acid battery

Energy-efficient 3-phase AC technology and high battery capacities allow for long operating times.
Different batteries available from 375 Ah to 620 Ah.
Lateral battery exchange option for multi-shift environments (optional).

Available with lithium-ion technology

High availability thanks to extremely short charging times.
No battery exchange required.
Saving costs due to longer service life and zero maintenance as compared to lead-acid batteries.
No charging rooms and ventilation required as there is no build-up of gas.

Rugged construction for the toughest applications

Impact-resistant steel drive panel.
High-quality stainless steel skirt raised extra high on the front panel.
Torsion-resistant load forks with draw bar kinematics prevent distortion, even with heavy loads and long support arms.

Central display and clear instruments for complete overview

Activation of the truck by EasyAccess via softkey, PIN code or optional transponder card.
The 2-inch display provides information on the battery discharge status, number of operating hours, travel speed as well as error codes.
Selection from three travel programs via softkey (optional).

Improved visibility

Better visibility in poorly lit areas thanks to integrated dayLED daytime running lights (optional).
Floor spot – significant reduction of risk to collide in blind spots due to a red dot of light projected onto the floor approx. 3 m in front of the truck (optional).

Ergonomic and efficient work

Back-friendly and time-saving order picking.
Mast lift to 700 mm (1500 mm optional) for depositing goods at an ergonomic height.
Placing of a fully picked pallet on the longer initial lift forks for lower centre of gravity and fast continuation of the picking process with a second pallet.
Load guard (optional) and pallet holder for picking up both pallets before starting the picking process: To do this, one pallet is placed upright on the load guard and fixed with the pallet holder. Once picking of the first pallet is complete, the order picking process can be continued directly with the second pallet.

Perfect workstation for maximum picking performance

Generous space, even for tall operators.
Diverse and individualised storage options such as the shrink wrap holder on the front cover.
Backrest versions to suit different needs.
Additional cushioned stand-on platform (optional).
Faster order picking thanks to touch mode in the backrest (optional).

Additional optional equipment

A comprehensive range of accessories allows for individual tailoring to your requirements.
Additional accessories for working at the second racking level.
Sturdy, universally applicable options bracket, e.g. for radio data transmission components.
Increased ease of use with optional sprung stand-on platform to reduce the vibrations felt by the operator.
