Electric 3-wheel forklift truck 1.4 - 2.0 t

2020 - 7000 mm
1400 - 2000 kg

Lithium-ion trucks for maximum performance in the smallest of spaces.
Battery options with capacities from 346 Ah to 690 Ah.
Ergonomic design and perfect all-round visibility.
Multifunctional touch display with high user-friendliness.
Comprehensive assistance systems for maximum occupational safety.

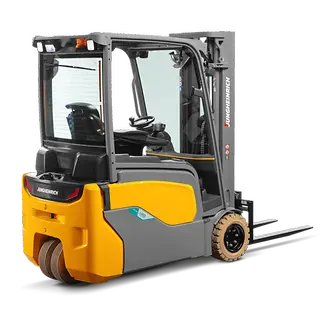

EFG 214ki–220i

Our versatile series 2i lithium-ion three-wheel counterbalance forklift trucks are the perfect helpers for efficient transport in narrow aisles, rear loading and unloading of HGVs or applications with attachments. They also demonstrate outstanding manoeuvrability in the tightest of environments. The modular energy concept with integrated Li-ion battery and capacities between 346 Ah and 690 Ah enables maximum flexibility in day-to-day logistics. Fast booster charging and maintenance-free operation guarantee maximum availability. Safety is ensured by assistance systems such as the AI-supported addedVIEW person detection and the zone-based zoneCONTROL collision protection system. The improved, well-thought-out ergonomics, excellent visibility and intuitive operation ensure optimum driving comfort.

Li-Ion

No worries. No compromise.

The Jungheinrich Li-ion Guarantee Plus offers up to 8 years of reliable performance for our high-quality lithium-ion batteries. Confident in their high performance and long service life, we also guarantee a hassle-free switch back to your original technology within 6 months of delivery.

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Best-in-class compactness

Optimum space efficiency thanks to the compact truck design with a turning radius reduced by up to 100 mm compared with the preceding model.

Responsive driving and working behaviour

Mast damping at the mast transitions and soft-stop function at the lower end stop of the forks.
High lift speeds for fast lifting.
Adjustable lever and axle assignment of the controls.
Strong hydraulic power for attachments.

Integrated lithium-ion technology

Modular lithium-ion battery concept with capacities from 346 Ah to 690 Ah.
Standard comfort charging system for fast, flexible charging.
High availability thanks to extremely short charging times.
Reduced costs thanks to extended service life and maintenance-free operation.
No more time-consuming battery exchange required.

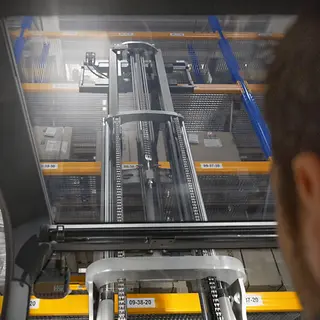

Perfect all-round visibility

Angled B-pillar with a blind spot reduced by up to 65% when reversing.
Optimal view of forks and load thanks to the low-profile design of the side panel.
Optional panorama roof window.

Innovative safety solutions

Standard automatic parking brake to prevent uncontrolled rolling back on ramps and inclines.
Optional SmartStripe LED light strip for increased safety in the warehouse with display of charging progress and other truck conditions.

Optional assistance systems

Pre-operation check for the safety inspection of the truck before starting work.
addedVIEW digital camera systems for improved visibility and safety in demanding operating environments.
zoneCONTROL for monitoring critical warehouse areas and protecting against collisions.
Reduction of travel speed when cornering due to curveCONTROL.
drive / liftCONTROL for automatic reduction of the working speed from a defined lift height.

Adaptable operating concept

Five configurable travel programs including ECO mode.
Three control systems to choose from: soloPILOT, duoPILOT and multiPILOT.
Stepless single-point adjustment of the armrest.
Steering column adjustable in height and tilt.
Adjustable lever and axle assignment of the controls.
Single or double pedal operation.

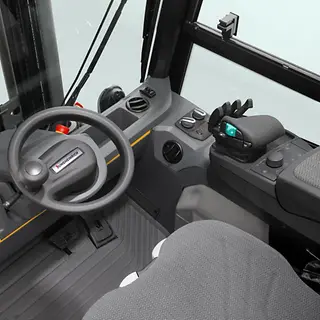

Ergonomic workplace

Noise-optimised truck concept with improved decoupling of the cabin from the chassis and reduced human vibrations.
Enlarged foot-well and optimised steering column for additional knee and legroom.
Low step tread for safe entry and exit.

Multifunctional HMI concept

4.3-inch touch display including EasyAccess Softkey access system to protect against unauthorised use.
Ergonomic keypads on the armrest for intuitive operation.
External power supply via optional USB ports in the armrest or in the side storage.









Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EFG 214ki	1,400 kg	7,000 mm	15 km/h	2,928 mm	51.2 V
EFG 216ki	1,600 kg	7,000 mm	15 km/h	2,928 mm	51.2 V
EFG 216i	1,600 kg	7,000 mm	15 km/h	3,036 mm	51.2 V
EFG 218i	1,800 kg	7,000 mm	17 km/h	3,056 mm	51.2 V
EFG 220i	2,000 kg	7,000 mm	17 km/h	3,164 mm	51.2 V
