Electric 4-wheel forklift truck 1.6 - 2.0 t

2020 - 7000 mm
1600 - 2000 kg

Robust lithium-ion trucks for diverse indoor and outdoor use.
Flexible energy concept with battery capacities from 346 Ah to 690 Ah.
Excellent all-round visibility and ergonomic design.
Multifunctional touch display with high user-friendliness.
Intelligent assistance systems for maximum occupational safety.

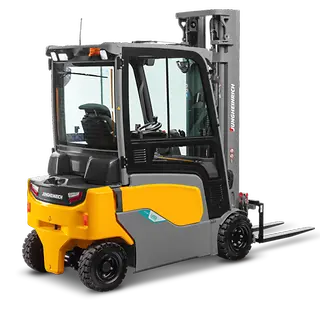

EFG 316ki–320i

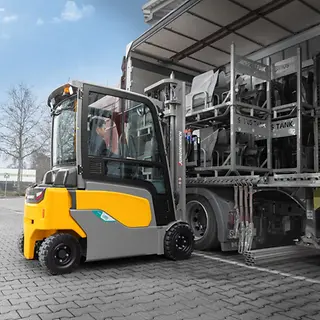

Our robust and efficient series 3i electric four-wheel counterbalance forklift trucks are ideally suited for demanding indoor and outdoor transport applications as well as use with attachments. The oscillating steering axle and four wheels ensure excellent ride comfort and high stability on uneven surfaces. The modular energy concept with an integrated Li-ion battery from 346 Ah to 690 Ah enables maximum flexibility in day-to-day logistics operations. Fast booster charging and maintenance-free operation guarantee maximum availability. Assistance systems such as the AI-supported addedVIEW person detection or the zone-based zoneCONTROL collision protection system ensure occupational safety, while the optimised steering column provides more legroom and the multifunctional touch display offers first-class comfort in the cabin.

Li-Ion

No worries. No compromise.

The Jungheinrich Li-ion Guarantee Plus offers up to 8 years of reliable performance for our high-quality lithium-ion batteries. Confident in their high performance and long service life, we also guarantee a hassle-free switch back to your original technology within 6 months of delivery.

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Best-in-class compactness

Optimum space efficiency thanks to the compact truck design with a turning radius reduced by up to 300 mm compared with the preceding model.

Electric parameter steering

Dynamic steering behaviour depending on the selected travel program.
Unnecessary steering movements are minimised.
Slim steering column creates more legroom.

Integrated lithium-ion technology

Flexible lithium-ion battery concept with capacities from 346 Ah to 690 Ah.
Standard comfort charging system for fast, flexible charging.
High availability thanks to extremely short charging times.
Cost savings through extended service life and zero maintenance requirements.
No more time-consuming battery exchange required.

Perfect all-round visibility

Angled B-pillar with a blind spot reduced by up to 65% when reversing.
Optimal view of forks and load thanks to the low-profile design of the side panel.
Optional panorama roof window.

Innovative safety solutions

Standard automatic parking brake to prevent uncontrolled rolling back on ramps and inclines.
Optional SmartStripe LED light strip for increased safety in the warehouse, indicating charging progress and other vehicle operating states.

Optional assistance systems

Pre-operation check for the safety inspection of the truck before starting work.
addedVIEW digital camera systems for improved visibility and safety in demanding operating environments.
zoneCONTROL for monitoring critical warehouse areas and protecting against collisions.
Reduction of travel speed when cornering due to curveCONTROL.
drive / liftCONTROL for automatic reduction of the working speed from a defined lift height.

Adaptable operating concept

Five configurable travel programs including ECO mode.
Three control systems to choose from: soloPILOT, duoPILOT and multiPILOT.
Stepless single-point adjustment of the armrest.
Steering column adjustable in height and tilt.
Adjustable lever and axle assignment of the controls.
Single or double pedal operation.

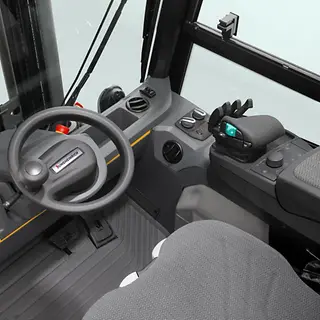

Ergonomic workplace

Noise-optimised truck concept with improved decoupling of the cabin from the chassis and reduced human vibrations.
Enlarged foot-well and optimised steering column for additional knee and legroom.
Low step tread for safe entry and exit.

Multifunctional HMI concept

4.3-inch touch display including EasyAccess Softkey access system to protect against unauthorised use.
Ergonomic keypads on the armrest for intuitive operation.
External power supply via optional USB ports in the armrest or the side storage.







Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EFG 316ki	1,600 kg	7,000 mm	17 km/h	3,031 mm	51.2 V
EFG 316i	1,600 kg	7,000 mm	17 km/h	3,139 mm	51.2 V
EFG 318i	1,800 kg	7,000 mm	17 km/h	3,159 mm	51.2 V
EFG 320i	2,000 kg	7,000 mm	17 km/h	3,267 mm	51.2 V
